Ulli Series/
General Duty On-off Electric Vavle Actuators
The ulli® series represents the company’s quarter-turn(part-turn) on-off electric valve actuators.
Torque range from 20NM to 6000NM.
Both Male and Female type available.
Prefix meaning:
"U" stands for "unique," highlighting patented designs.
"L" for "light" (lightweight) and "long life" (durability). "I" for "intelligentize," emphasizing smart features.
Introduction
Built to Meet Every Actuation Need
The Ulli series is engineered to deliver maximum durability, compactness, and ease of installation. Its ultra-compact body reduces the spatial issues often encountered in today’s dense piping networks and control environments. The mounting base adheres to international interface standards, and users can choose either a female drive or an optional male drive to allow direct connection to a broad range of valves. Constructed from high strength diecast aluminum, the enclosure provides long term reliability that typically surpasses the service life of the valves it operates.
Offering adjustable torque levels from 20 Nm to 6000 Nm, the series is suitable for an extensive range of actuation requirements. It accommodates everything from ball valves near from DN15 to DN500 and butterfly valve from DN30 to DN250. The rugged housing is suitable for both indoor control panels and outdoor installations exposed to sun, rain, and temperature variation. The actuator operates reliably within a wide temperature range of -40°C to 55°C, incorporates F class insulation for superior thermal protection and motor longevity, and is IP68 rated for complete protection against dust and prolonged water exposure.
Built to Meet Every Actuation Need, the Ulli series offers consistent performance and reliability for everyday industrial use.
Features & Benefits
Functionality Performance & Integration
Ultra Compact and Lightweight
Truly bracket-free - only 35% of the size and weight of products in the same class with ISO 5211 direct mount.
Smart Control
Built-in smart control module, eliminating the need for external positioners.
Customization Options
Shaft types, male/female, BLDC motor, overload protection,
explosion-proof, emergency shut-off, etc.
Versatile Power Option
AC220V, AC110V, DC24V, AC24V, AC380V
High-Speed Option
Full travel time adjustable to 5s, 10s, 15s, 30s, or 60s. Proprietary patented design enables significantly increased speed and minimal heat generation.
Reliability & Durability
Certified Safe
Tested with 1500V withstand voltage, F-class insulation, CE compliant.
Robust Build
Die-cast aluminum housing with a refined, smooth finish to reduce electromagnetic interference. Integrated worm gear output shaft made of specially forged copper alloy, offering high strength and excellent wear resistance.
Wide Environmental Compatibility
No lubrication or inspection needed. IP68 waterproof, rustproof, and supports angle-free installation.
Position Feedback
Clear visual indicator for quick status check.
Series Specification
Torque Output
20 to 6000 Nm
Voltage
220V AC Single-Phase
110V AC Single-Phase
380V AC Three-Phase
24V DC
220V DC
Materials
Mounting/Shaft: Copper Alloy
Base: Diecast aluminum alloy
Cover: Diecast aluminum alloy
Cover and Base Finish: Powder coated epoxy
ISO 5211 Direct Mount Connections Flange
F05 / F07 / F10 / F12 / F14 / F16 / F25
Drive shaft
Female or Male drive shaft
Temperature Range
–40°C (space heater required) to 55°C
–40°F (space heater required) to 131°F
Electric Motor
F class insulation
Passes 1500 V dielectric withstand testing
Enclosure Rating
IP68
Electrical Connection
PF1/2" conduit
Lubrication
Molybdenum based grease, permanent and effective
Typical Applicable Valve Sizes
Ball valves
DN15-DN500
Butterfly valves
DN25-DN1000
Options & Add-Ons
Viewing window type
Flat or spherical
Drive connection
Female output drive or male output drive
Outer cover colour
Black, blue, or gray housing
Output shaft types
Four square, round hole, double D, or keyed output shaft
Handwheel
Manual handwheel with mechanical disengagement
Power outage return
Preset fail open or fail close operation during power loss
Electronic overload protection
Bidirectional electronic overload protection with output terminals
Brushless DC motor drive
Brushless DC motor drive with high efficiency and minimal heat output
Current position feedback
Current position transducer for valve position feedback
Advanced H class configuration
High temperature resistant components with enhanced environmental protection
Video
Specifications
Model | Power Supply | Torque | Stroke Time for 50Hz 50Hz | Motor Power (In/Out) For AC Motor | 220V Start Current | 220V Rated Current | Weight (kg) | IP Class |
|---|---|---|---|---|---|---|---|---|
ulli-2 | AC24V AC220V AC110V | 20 | 30 | 15W/5W | 0.12A | 0.12A | 1.8 | IP68 |
ulli-5 | AC380V
AC/DC24V
AC220V AC110V | 50 | 30 | 30W/10W | 0.25A | 0.25A | 2.6 | IP68 |
ulli-10 | AC380V AC/DC24V AC220V AC110V | 100 | 30 | 80W/23W | 0.58A | 0.5A | 3.7 | IP68 |
ulli-16 | AC380V AC/DC24V AC220V AC110V | 160 | 45 | 100W/30W | 0.72A | 0.6A | 3.7 | IP68 |
ulli-20 | AC380V AC/DC24V AC220V AC110V | 200 | 30 | 100W/30W | 0.72A | 0.68A | 3.7 | IP68 |
ulli-25 | AC380V AC/DC24V AC220V AC110V | 250 | 30 | 150W/90W | 0.69A | 0.6A | 7.5 | IP68 |
ulli-50 | AC380V AC/DC24V AC220V AC110V | 500 | 30 | 300W/90W | 1.38A | 1.2A | 8 | IP68 |
ulli-60 | AC380V AC/DC24V AC220V AC110V | 600 | 30 | 300W/90W | 1.38A | 1.2A | 8 | IP68 |
ulli-100 | AC380V AC/DC24V AC220V AC110V | 1000 | 50 | 300W/90W | 1.38A | 1.2A | 12 | IP68 |
ulli-200 | AC380V AC/DC24V AC220V AC110V | 2000 | 100 | 300W/90W | 1.38A | 1.2A | 12 | IP68 |
ulli-400 | AC380V AC/DC24V AC220V AC110V | 4000 | 150 | 500W/150W | 2.3A | 2.0A | 31 | IP68 |
ulli-600 | AC380V AC/DC24V AC220V AC110V | 6000 | 150 | 500W/150W | 2.3A | 2.0A | 31 | IP68 |
Model Variations
ulli-xxs: Four-position switch signal feedback (dry contact or LED)
ulli-xxR: Potentiometer (resistive) position feedback
ulli-xxEX: Explosion-proof design
ulli-xxw: Wireless remote control with RS-485 Bus Control
ulli-xxt: Electronic bidirectional overload protection
ulli-xxCB: Super capacitator failsafe function
ulli-Lxx: Linear actuator with position indicator light
Direct Mounted Dimensions for Butterfly Valve
Butterfly Valve Mounting Dimensions for Direct (bracket-free) Installation
— For Reference Only
Electric Actuator Model | Compatible Butterfly Valves (DN) | Flange Standard (ISO 5211) | Bolt Circle Diameter (PCD) | Stem Size | Extension Length (mm) | Chamfered Circular Diameter | Screw Thread Diameter |
|---|---|---|---|---|---|---|---|
ulli-2 | 25-50 | F05/F03 | D50/D36 | 9*9 | 10-15 | No restrictions | M6/M5 |
ulli-5 | 50-80 | F07/F05 | D70 | 11*11 | 0-20 | No restrictions | M8/M6 |
ulli-10 | 100 | F07 | D70 | 14*14 | 15-25 | No restrictions | M8 |
ulli-16 | 125-150 | F07 | D70 | 17*17 | 15-25 | ≤ Φ22 | M8 |
ulli-25 | 200 | F12/F10 | D125/D102 | 22*22 | 20-30 | ≤ Φ30 | M12/M10 |
ulli-50 | 250 | F12/F10 | D125/D102 | 27*27 | 25-40 | ≤ Φ36 | M12/M10 |
ulli-100 | 300-400 | F14 | D140 | 27*27 | 25-40 | ≤ Φ37.6 | M12 |
ulli-200 | 400-500 | F14 | D140 | 36*36 | 30-40 | ≤ Φ48 | M12 |
ulli-400 | 600-700 | F25 | D254 | 38*38 | 35-50 | ≤ Φ75 | M20 |
ulli-600 | 800 | F25 | D254 | 46*46 | 35-50 | ≤ Φ75 | M20 |
ulli-600 | 900-1000 | F25 | D254 | 55*55 | 35-50 | ≤ Φ75 | M20 |
AC24V / DC24V Dual Voltage Actuator
The AC24V/DC24V universal actuator utilizes our proprietary "function block" design (as shown in the diagram) toachieve dual-voltage compatibility. When using AC24V, the wiring method is exactly the same as for our standard ACmodels. If using DC24V, connect the negative terminal to terminal 1 and switch the positive polarity between terminals 2and 3 to control rotation direction.
Model | Power Supply | Torque (Nm) | Stroke Time for 50Hz (Sec) | Locked-Rotor Current (A) | Working Current (A) | Weight (kg) | IP CLASS |
|---|---|---|---|---|---|---|---|
ulli-5 | AC/DC 24V | 50 | 6 | 0.6 | 0.3 | 2.6 | IP68 |
ulli-10 | AC/DC 24V | 100 | 12 | 1 | 0.6 | 3.7 | IP68 |
ulli-25 | AC/DC 24V | 250 | 11 | 3 | 1.5 | 7.5 | IP68 |
ulli-50 | AC/DC 24V | 500 | 22 | 3 | 1.5 | 8 | IP68 |
ulli-100 | AC/DC 24V | 1000 | 45 | 6 | 2.5 | 12 | IP68 |
ulli-200 | AC/DC 24V | 2000 | 100 | 6 | 2.5 | 12 | IP68 |
ulli-400 | AC/DC 24V | 4000 | 100 | 10 | 5 | 31 | IP68 |
ulli-600 | AC/DC 24V | 6000 | 150 | 10 | 5 | 31 | IP68 |
AC/DC 24V Power Supply Universal Circuit Diagram:
Diagrams & Drawings
Spherical viewing window
Allows for horizontal observation of the open/closed state from distance
Gear reduction cover
contains a gearbox inside
Manual Override Port
with Anti-Drop Feature
For attaching a handle or installing ahandwheel
Stainless steel anti-drop screws
A handle or handwheel can be installed here
Wiring Cover
Users open this cover to connect wires
Electric Cover
With various electrical
components built in
Internal Visual Indicator

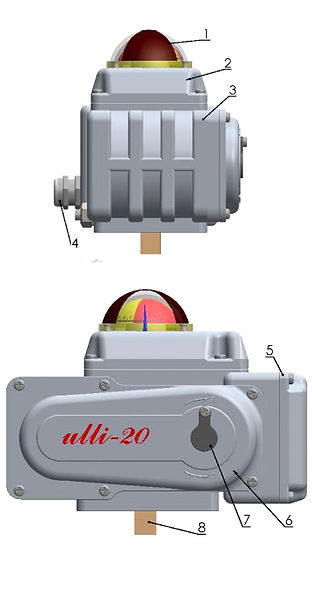

Enclosure / Housing
Limit Cam
Cam Locking Screw
Motor Pinion
Gearbox
Compound Gear
DG1
Compound Gear
DG2
Intermediate Idler Gear
Gearbox Side Cover
Waterproof Plug
External visual indicator
Electrical Cover
Limit Switch
Capacitor
Cable Gland
Terminal Block
Worm Gear
1
2
3
1
4
5
6
7
8
Spherical Viewing Window
Wiring Cover
Electrical Cover
Gear Reduction Cover
Housing/Body
Handle or Handwheel Opening Plug
Cable Fixing Head
Output Shaft or Output Hole
For dimensional drawings, please refer to the product page corresponding to the applicable torque.
