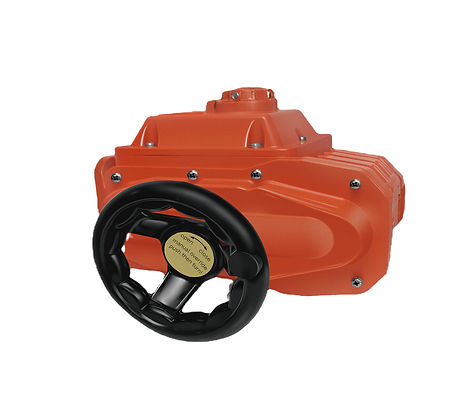

Explosion-Proof Actuator
Introduction:
Designed for harsh environments, the Explosion Proof Series (EX d II BT4 certified) features a CNAS-accredited conformity certificate and has undergone extensive testing to ensure durability and safety. Equipped with an internationally certified electronic control module, these actuators provide robust performance and protection in hazardous conditions.
FEATURED PRODUCTS
Introduction
-
Certified as explosion-proof with a conformity certificate accredited by CNAS
-
Withstood extensive testing experience in harsh environments
-
Internationally certified electronic control module
Explosion-proof Certification:
EX d II BT4
Standard Model
Explosion-Proof
Reinforced for Safety
Standard Actuator vs Explosion-Proof
Explosion-proof actuator features a much thicker housing for superior durability and protection in hazardous environments.
Specifications
Model 型号 | Power Supply 电源 | Torque 扭矩 (NM) | Stroke Time for 50Hz 行程时间@50H (Sec) | Motor F Class In/Out 电机F级 输入/输出功率 | 220VAC Start Current 220V 启动电流 | 220VAC Rated Current 220V 额定电流 | Weight 重量 (kg) | IP Class 防护等级 |
|---|---|---|---|---|---|---|---|---|
ulli-10EX | AC380V / AC/DC 24V / AC/DC 220V / AC110V | 100 | 30 | 80W/23W | 0.58A | 0.5A | 10 | IP68 |
ulli-16EX | AC380V / AC/DC 24V / AC/DC 220V / AC110V | 160 | 30 | 110W/30W | 0.72A | 0.68A | 10 | IP68 |
ulli-25EX | AC380V / AC/DC 24V / AC/DC 220V / AC110V | 250 | 30 | 150W/45W | 0.86A | 0.8A | 10 | IP68 |
ulli-50EX | AC380V / AC/DC 24V / AC/DC 220V / AC110V | 500 | 30 | 300W/90W | 1.38A | 1.2A | 10 | IP68 |
ulli-60EX | AC380V / AC/DC 24V / AC/DC 220V / AC110V | 600 | 30 | 300W/90W | 1.38A | 1.2A | 10 | IP68 |
digicon-10EX | AC380V / AC/DC 24V / AC 220V / AC110V | 100 | 30 | 80W/23W | Input signal 4–20mA 0–10V | Output signal 4–20mA | 11 | IP68 |
digicon-16EX | AC380V / AC/DC 24V / AC 220V / AC110V | 160 | 30 | 80W/23W | Input signal 4–20mA 0–10V | Output signal 4–20mA | 11 | IP68 |
digicon-25EX | AC380V / AC/DC 24V / AC 220V / AC110V | 250 | 30 | 150W/45W | Input signal 4–20mA 0–10V | Output signal 4–20mA | 11 | IP68 |
digicon-50EX | AC380V / AC/DC 24V / AC 220V / AC110V | 500 | 30 | 300W/90W | Input signal 4–20mA 0–10V | Output signal 4–20mA | 11 | IP68 |
digicon-60EX | AC380V / AC/DC 24V / AC 220V / AC110V | 600 | 30 | 300W/90W | Input signal 4–20mA 0–10V | Output signal 4–20mA | 11 | IP68 |

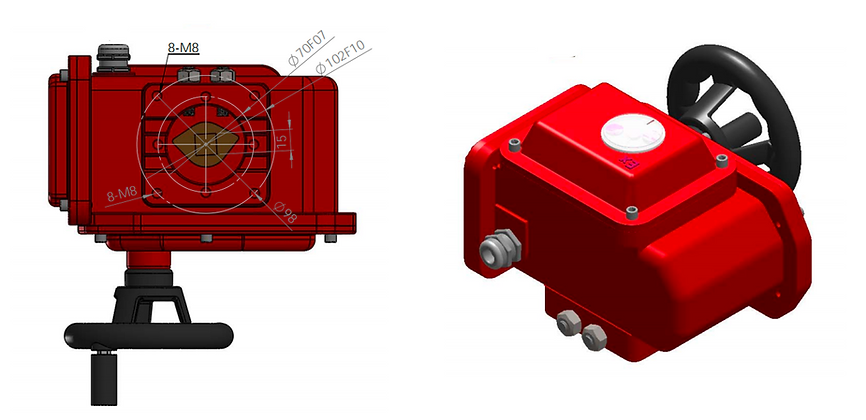

Diagrams & Drawings
ulli-06/16EX digicon-06/16EX
ulli-25/50EX digicon-25/50EX
