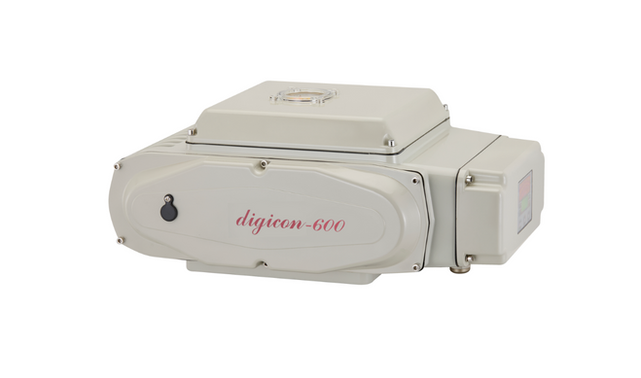

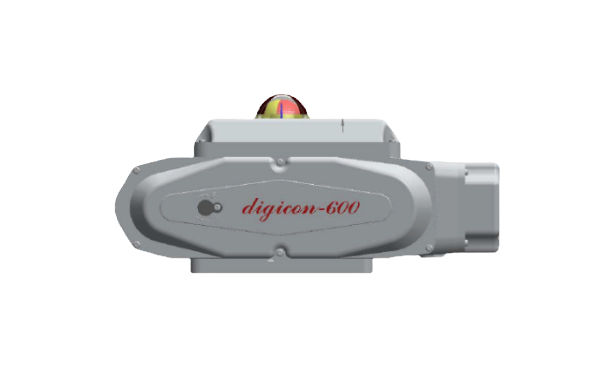

digicon-600
Introduction:
Our digicon® series offers electric modulating actuators with torque range of 20Nm–6000Nm, available in both male (protruding drive shaft) and female (hollow socket) types for different connection interfaces.
Standard Specification
Model | digicon-600 |
Torque (Nm) | 6000 |
Power Supply | 220/110V AC380V AC |
Flange (ISO 5211) | F25 |
Stroke Time for 50Hz (sec) | 150 |
Motor Power (In/out) | 500/150 |
Input Signal | 4-20mA 0-10V |
Output Signal | 4-20mA 0-10V |
Weight (kg) | 32 |
Enclosure Rating | IP68 |
Ambient temperature | –40°C (space heater required) to 55°C –40°F (space heater required) to 131°F |
Duty Cycle (AC units) | 50% |
Duty Cycle (DC units) | 100% |
Installation Angle | 360° at any angle |
Insulation | F Class |
Certifcation | CE |
Dimensional Drawing
ulli-400/600 digicon-400/600
unit: cm
Female Type:
Male Type:
Options / Add-Ons
Viewing Window Type | Flat Viewing Window/ Spherical Viewing Window | Free |
Connection Type | Female/Male | Free |
Outer Cover Colour | Black/Blue/Gray | Free |
Output Shaft Types | Four-Square Output Shaft/ Round-Hole Output Shaft/ Double-D Output Shaft/ Keyed Output Shaft | Free |
Voltage Options | As indicated in the specifications above | Free |
Handwheel | - | Chargeable |
Power Outage Return | - | Chargeable |
Electronic Overload Protection | - | Chargeable |
Brushless DC Motor Drive | - | Chargeable |
Current Position Feedback (Current Position Transducer) | - | Chargeable |
Advanced H Class Configuration | - | Chargeable |
Valve Compatibility
For reference only:
Compatible Ball Valves | DN250-DN300 |
Compatible Butterfly Valve | DN700-DN800 |
