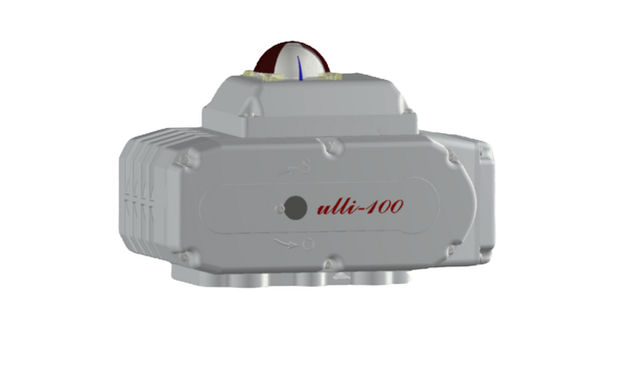

ulli-100
介绍：
Our ulli® series features general duty electric on off actuators with a torque range of 20 Nm to 6000 Nm. They are available in both male (protruding shaft) and female (hollow socket) configurations to suit various valve connection types. The series also supports a wide range of customization options to meet specific application requirements.
Standard Specification
Model | ulli-100 |
Torque(Nm) | 1000 |
Power Supply | 24V AC/DC 110/220V AC Single-Phase 380V AC Three-Phase |
Flange(ISO 5211) | F14 |
Stroke Time for 50Hz(sec) | 50 |
Motor Power (In/out) | 300/90 |
220V Start Current (A) | 1.38 |
220V Rated Current (A) | 1.2 |
Weight (kg) | 12.0 |
Enclosure Rating | IP68 |
Ambient temperature | –40°C (space heater required) to 55°C –40°F (space heater required) to 131°F |
Duty Cycle (AC units) | 50% |
Duty Cycle (DC units) | 100% |
Installation Angle | 360° at any angle |
Insulation | F Class |
Certifcation | CE |
Dimensional Drawing
Ulli-100/200 digicon-100/200
unit: cm
Female Type:
Male Type:
Valve Compatibility
For reference only:
Compatible Ball Valves | DN125-DN150 |
Compatible Butterfly Valve | DN300-DN400 |
Options / Add-Ons
Option | Description | Free/Chargable |
Viewing window type | Flat viewing window or spherical viewing window | Free |
Drive connection | Female recessed connection or male protruding connection | Free |
Outer cover colour | Black, blue, or gray housing | Free |
Output shaft types | Four square, round hole, double D, or keyed output shaft | Free |
Voltage options | AC 220 V single phase, AC 380 V three phase, AC 110 V single phase, AC 24 V single phase, DC 24 V, DC 220 V | Free |
Handwheel | Manual handwheel with mechanical disengagement | Chargable |
Power outage return | Preset fail open or fail close operation during power loss | Chargable |
Electronic overload protection | Bidirectional electronic overload protection with output terminals | Chargable |
Brushless DC motor drive | Brushless DC motor drive with high efficiency and low heat output | Chargable |
Current position feedback | Current position transducer for valve position feedback | Chargable |
Advanced H class configuration | High temperature resistant components with enhanced environmental protection | Chargable |
